The InHand SMA 4G Magnetic Base Antenna boosts 4G LTE signal for routers and IoT devices. With wide frequency support, a 2-meter RG174 cable, and a sturdy magnetic base, it’s easy to install and built for performance. IP65-rated for dust and water resistance, it's perfect for industrial, vending, and remote monitoring setups.
InHand SMA 4G Magnetic Base Antenna (SKU: AANT090033)
Stronger Signal, Smarter Deployment – Built for Industrial 4G & IoT Use
Struggling with weak 4G signals in your IoT or industrial setup? The InHand Networks SMA 4G Magnetic Base Antenna is designed to fix that by boosting your LTE connectivity without complicated installations. Whether it’s a remote monitoring unit, vending machine, or a cellular router this antenna gets the job done, reliably.
Key Features at a Glance
-
Dual-band frequency: 690–960 MHz & 1710–2690 MHz
-
Gain: ≥2.94 dBi for solid signal improvement
-
Connector: SMA Male (standard for most LTE routers)
-
Cable: 2-meter RG174 cable gives you flexible placement
-
Polarization: Vertical
-
IP Rating: IP65 – dustproof and water-resistant
-
Base: Magnetic, 29.8 mm wide – sticks securely to metal surfaces
-
Size: Just 112 mm tall – compact but powerful
Why the Magnetic Base Matters
The built-in strong magnetic base makes it easy to attach the antenna to any metal surface, no screws, no hassle. Ideal for metal enclosures, cabinets, vending machines, or industrial panels. Once it’s in place, it stays there even in semi-outdoor environments.
Broad Compatibility
Works with a wide range of cellular devices, including:
-
4G LTE industrial routers
-
Cellular IoT gateways
-
Embedded 4G modules
-
M2M RTU/DTU terminals
-
Remote SCADA & AMI systems
-
Digital signage and kiosks
Built Tough for Real-World Use
With an IP65 rating and operating temperature range of -20°C to 60°C, this antenna is made to handle harsh indoor and semi-outdoor environments. Whether it’s dusty, damp, or slightly exposed, it keeps performing.
Technical Summary Table
|
Feature
|
Specification
|
|
Frequency Bands
|
690–960 MHz, 1710–2690 MHz
|
|
Gain
|
≥2.94 dBi
|
|
VSWR
|
<6.43
|
|
Impedance
|
50 Ω
|
|
Polarization
|
Vertical
|
|
Cable
|
2m RG174
|
|
Connector
|
SMA Male (Center Pin)
|
|
IP Rating
|
IP65
|
|
Operating Temp
|
-20°C to 60°C
|
|

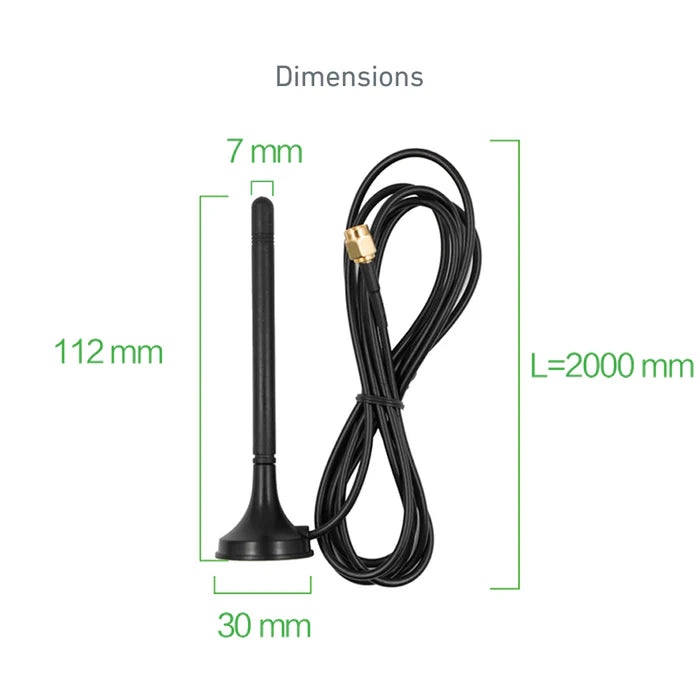

Dimensions (H x Base)
|
112 mm x 29.8 mm
|
|
Mount Type
|
Magnetic
|
Need reliable LTE connectivity in tight, metal-heavy environments? The InHand Magnetic Base Antenna makes it plug-and-play simple with rugged performance to match.
Available now at All Ways Wireless.
